A 34GHz, 1.59dB NF, 13.5dB Gain Differential Common-Source Cascode mm-wave LNA for 5G NR applications in 22nm FDSOI

LNA Schematic

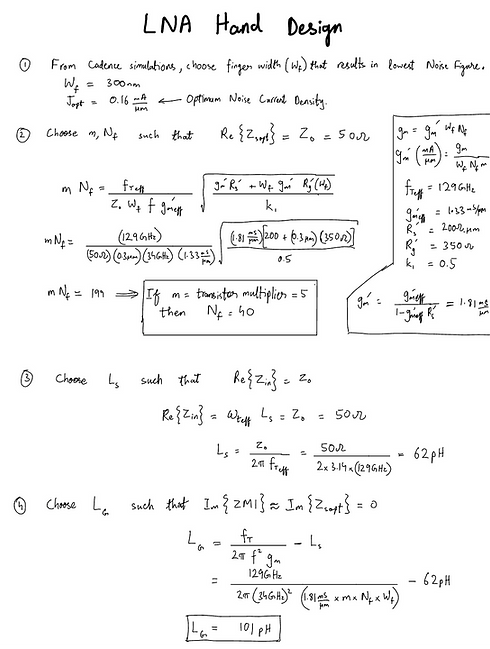

LNA Hand Design

Hand Design Page 2.png

LNA Plots

Input Matching (SDD11) and Output Matching (SDD22) vs Frequency

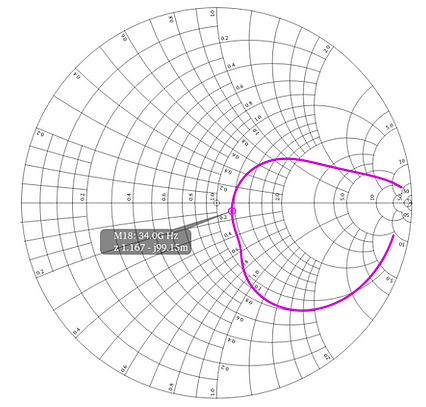

Optimum Noise Reflection Co-efficient (Gmin) vs Frequency


Noise Figure (NF) and Min. Noise Figure (NFmin) vs Frequency


Gain (S21) and Max. Availabale Gain (Gmax) vs Frequency


Reverse Gain (S12) vs Frequency


1dB Compression (P1dB)


Stability Factor (Kf) vs Frequency


LNA Input Impedance(ZM1) vs Frequency


LNA Output Impedance(ZM2) vs Frequency


Project Documentation (button below) includes:
1. LNA Schematics with DC Operating Points, Component Parameters
2. Main LNA Specifications (NF, Gmin, S11, S22 and S21) at 65degC, 0.8V
3. Main LNA Specifications at 125degC, 0.75V
4. Main LNA Specifications for TT, FF, SS corners
